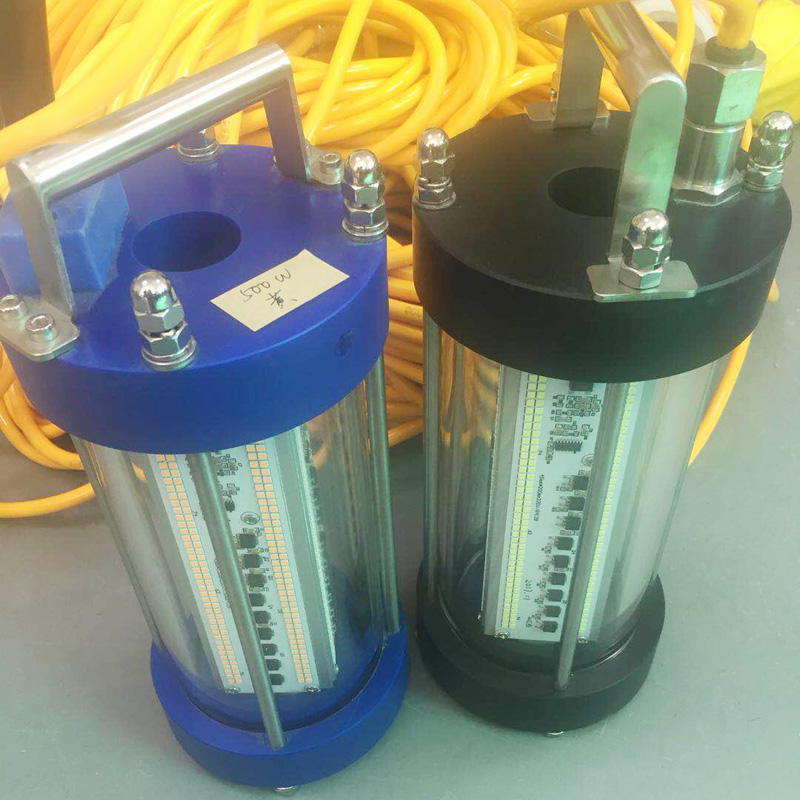

500W DC12V-24V 110V 220V LED Underwater Fish attracting light Farming fish light

500W DC12V-24V 110V 220V LED Underwater Fish attracting light Farming fish light

1. High quality waterproof material

2. Super bright SMD3030 as light source

3. DC12V DC24V AC110V AC220V are available

4.30meters cables are attached

5. IP68 Waterproof, it can be work in underwater up to 100meters

6. Available in 500W

7. with the wide beam angle of 360 degree

8. Suitable for sea fishing night fishing lure fish and fishing farm.

9. Over voltage, short circuit, temperature, open circuit protection

  • Specification
  • Packing detail
  • Application
  • Inquire

Features of LED underwater fish attracting lights, LED Dock light DC12-24V 110V 220V 500W

1: Misprocessed control technology

2: Super bright SMD3030 LED, built in power supply

3: 30Meters Cable attached (Black or Yellow colors for cables are available)

4: 1 fish using photo taxis attract fish special fishing, aquaculture, fishing lamps.

5: Available power is in 500W

6. Wide beam angle of 360 degrees, down directly into the water, maximize the use of light.

7. Easy to install, power supply cord directly access 220V or 110V alternating current can be used without rectifier. Or work it in DC12-24V.

8. Waterproof IP68, not afraid of rain, salt corrosion.

9. Average power consumption of 6 days: 15 degrees (10 hours per day).

10. Suitable for sea fishing night fishing lure fish and fishing farm.

11. Over voltage, short circuit, temperature, open circuit protection

Introduction for LED underwater fish attracting lights, LED Dock light DC12-24V 110V 220V 500W

Our led fish attractor has high fish lamp lights, the light efficiency of more than 3000 w, 1700 w high pressure sodium lamp set fish lamp brightness, light emitting Angle is 360 degrees,

All loss of the light source is small, light energy fall into water, and enhance collection of fish. Without external rectifier, lamps and lanterns are with capacitive circuit,

More matching with the alternator perceptual circuits. Lamps and lanterns is waterproof processing. Lamp bead imported brand LG2835 lamp bead, long service life

50000 hours. Manufacturer’s warranty 2 years,  product life-long maintenance.



Light source: 3030LEDS, 1 W, chips,

The glue for waterproof is imported from Japan, photosynthetic efficiency can be over 150-160 lm/W, power factor > 99%, the efficiency of > 98%.

Constant power output, small loss, high efficiency and energy saving

A variety of circuit protection, extend the life of the ballast

Adaptive output control, high reliability.

Make full use of the generator unit capacity, improve the overall efficiency

220 V or 110V or DC12-24V; A temperature-controlled protector Long time lighting, ballast low temperature

The built-in ballast, more convenient to carry, and increase the space of the ship

Note: the quality assurance for two years, diameter size: 150 mm, the lamp body material: aluminum gold + acrylic glass

Power factor: 0.99, light Angle: 360, light colors: green, can replace traditional set fish lamp power 1300W

led Underwater attracting fish light hich uses green light to structure above water or underwater to attract fishes.

Greenough Fishing Lights manufactures high quality, energy efficient, water proof lights for both “above water” and “underwater” applications.

Greenough Fishing Lights adopts high output LEDs for great fish attracting capability.

The fish attracting capability of our high output LED dock lights will enhance fishing, and just watching fish, right off your dock for the entire family.

Factors such as water depth, clarity, boat traffic, and the desired appearance of the illuminated area should be considered

When choosing the best suited dock light. If possible, it's always better to use (2) green fish lights compared to (1) green fish light in most

Circumstances.  Using two lights spread 3' to 4' apart will give you a much wider radius of light

and will allow more fisherman to fish in different zones of the light.  However, if you have a

smaller boat, one underwater fish light will provide sufficient light.

Technique detail for LED underwater fish attracting lights, LED Dock light DC12-24V 110V 220V 500W





Item No.:

GNH-AF-500W-12-24V-X

GNH-AF-500W-220V-X

GNH-AF-500W-110V-X

Wattage (W):

500W

500W

500W

Voltage(V)

DC12-24V

AC220V 50-60Hz

AC220V 50-60Hz

LED Type:

3030SMD

3030SMD

3030SMD

LED Quantity:

671PCS

671PCS

671PCS

Color:

Green/White/Red/Blue

Green/White/Red/Blue

Green/White/Red/Blue

Beam Angle:

360°

360°

360°

Size:

Φ135mm x H360mm

Φ135mm x H360mm

Φ135mm x H360mm

IP Rating

IP68

IP68

IP68

Body Material

Aluminum

Aluminum

Aluminum

The bulbs to replace:

Can replace the traditional 2000W fish light

Can replace the traditional 2000W fish light

Can replace the traditional 2000W fish light

Length of cables

30M

30M

30M

Weight/Pc

8.80Kgs

8.80Kgs

8.80Kgs





Keywords: fish attracting lights, fish attracting lights green, fish attracting dock lights,

underwater fish attracting lights, boat fish attracting light, led fish attracting lights,

fishing light attractor, bait fish attracting light, led boat lights,

green underwater fish light, Underwater Fish Lights, Snook Light, Dock Light, green light



 Packing detail:

Part No.

Package dimension

GNH-AF-500W-220V-X

33*33*48CM; 1Pc/CTN; G.W:8.80Kgs

GNH-AF-500W-110V-X

33*33*48CM; 1Pc/CTN; G.W:8.80Kgs

GNH-AF-500W-12-24V-X

33*33*48CM; 1Pc/CTN; G.W:8.80Kgs



Fishery: to promote the hatchery and growth of the fish;

Fishing: installed on the boat to attract the fishes when fishing in the sea.
